Wonrabai 1.5 Inch LCD Display Module IPS Panel Rounded Corners 240×280

Description

Product Overview

The Wonrabai 1.5‑inch LCD display module combines a high‑quality IPS panel with rounded corners for a sleek, modern look. With a native resolution of 240×280 pixels and 262K RGB colors, it delivers sharp, vivid images in a compact size of just 0.11 x 1.35 x 1.12 inches. The module operates at 3.3 V or 5 V and uses an embedded NV3030B driver, ensuring low power consumption and reliable performance. Its SPI interface minimizes required I/O pins, making it perfect for a wide range of controller boards.

Usage

Designed for makers, engineers, and hobbyists, this display fits seamlessly into projects like handheld consoles, portable instrumentation, smart wearables, and IoT dashboards. Whether you are building a Raspberry Pi weather station, an Arduino‑based sensor readout, or an ESP32‑driven smart display, the module’s compact footprint and easy‑to‑use SPI connection simplify integration. Its bright, color‑accurate screen performs well in indoor lighting and low‑light environments alike.

Why Choose Us

Wonrabai’s reputation for reliable electronics ensures this LCD module meets strict quality standards. Each unit undergoes thorough testing for color uniformity, voltage stability, and interface integrity. The included online development resources—example code for Raspberry Pi, Arduino, STM32, ESP32, RP2040, and Jetson—reduce development time and help you get your prototype up and running quickly. Customer support is available to assist with any integration questions.

Key Features

• Compact 1.5‑inch IPS panel delivers vivid colors and wide viewing angles.
• High‑resolution 240×280 pixel matrix with 262K RGB shades for clear graphics.
• SPI interface reduces wiring complexity, ideal for microcontroller projects.
• Operates on 3.3 V or 5 V, compatible with most development boards.
• Comprehensive online examples and responsive support for fast development.

FAQ

What controllers are compatible with this display?

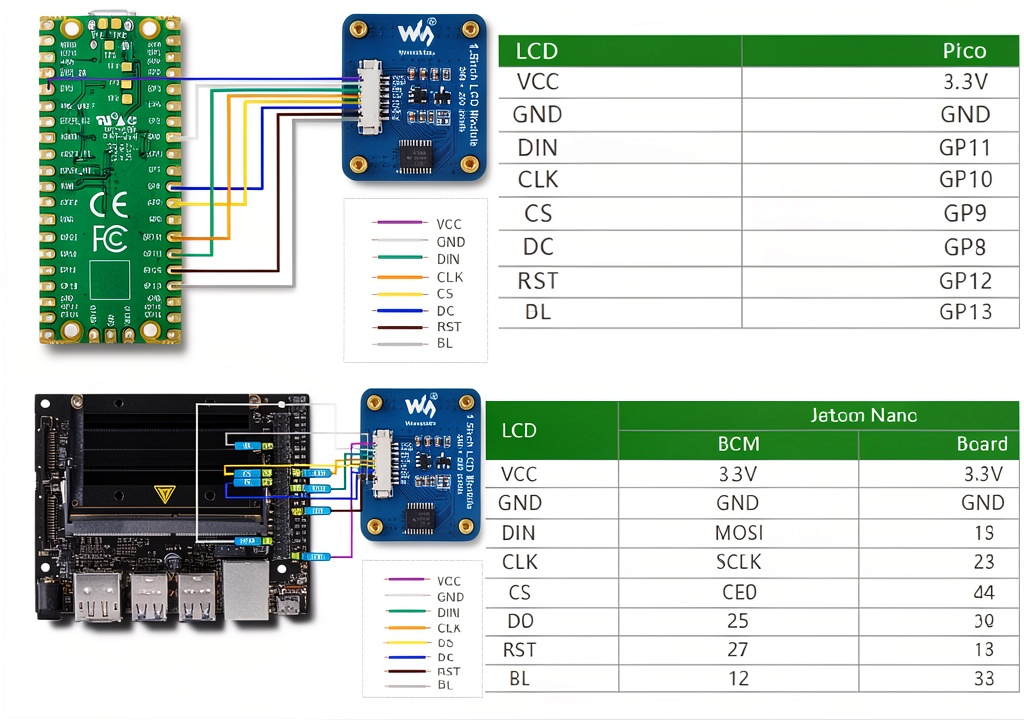

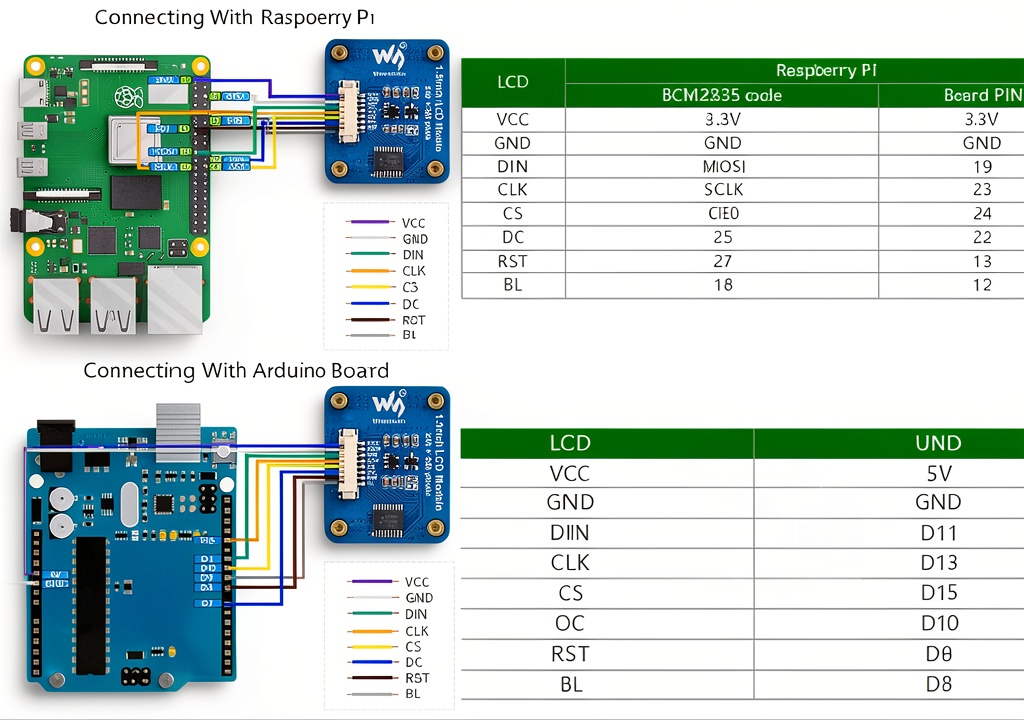

The module works with Raspberry Pi, Arduino, ESP32, STM32, RP2040, Jetson and any board that supports SPI communication and 3.3 V/5 V logic levels.

Do I need additional drivers to use the display?

The built‑in NV3030B driver handles the LCD functions; you only need to send pixel data via SPI using the provided libraries.

Can I power the display from a battery?

Yes, its low power consumption at 3.3 V makes it suitable for battery‑operated projects.

Is the screen backlit?

Yes, the IPS panel includes a built‑in backlight for clear visibility in various lighting conditions.

What is the warranty period?

Wonrabai offers a one‑year warranty covering manufacturing defects.
